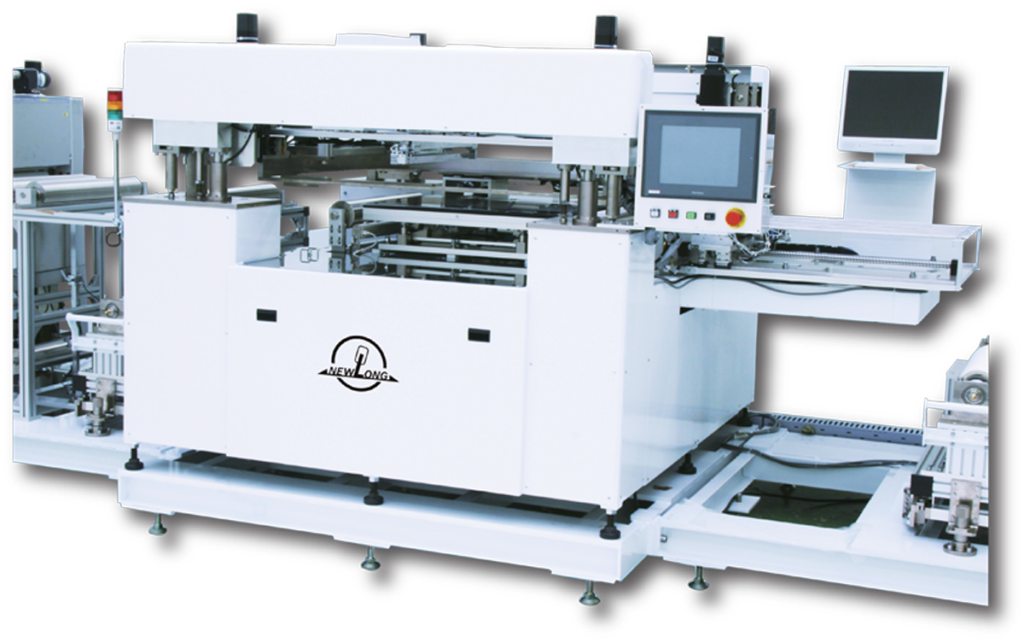

LARGE SCALE HIGH-SPEED SCREEN PRINTER

HIGH-PRECISION & HIGH-SPEED
The NEWLONG LS-500NC is equipped with CCD Camera and an image-processing system as well as a Position Feedback System for accurate alignment. Specifically, the LS-500NC is a high productivity screen-printer. For instance, it comes with fast TAKT (10 sec). Important to realize the features that prevent substrate damage. Including an off-contact mechanism, air-shaft support, and a specially designed transfer system. In conclusion, the NEWLONG LS-500NC increases plant productivity.

To learn more about the LS-500NC, download a brochure.

MAIN FEATURES

A Roll-to-Roll system is suitable for larger substrates.
Suitable for manufacturing of FPC, Touch Panels, IC-Tags, IC-Cards, organic thin-film PV, etc.
Selectable Squeegee Stroke Direction: Web flow direction or web width direction
Equipped with high-precision features to achieve accuracy of ±10μ or better. (CCD, EPC, and Position Feedback)
High repeatability is achieved by inter-frame vertical movement only.
Splice station on Unwinder.
Interleaf roll-on payout and rewind

Roll to Roll Screen Printing

Specification
Machine Size (mm) -> 1780(W) x 1710(D) x 1445(H)
Printing Area (mm) -> 610 x 610
Screen Frame Size (mm) -> 950~1100 x 1200mm
Squeegee Stroke -> 900mm
Substrate Web Width (mm) -> 250~500mm
Repeatability -> Within ± 10μm
Clearance -> Z-Axis 20mm
Flow direction -> Left to right facing the machine
Transfer -> Suction roller
Oven -> Convection
Utility -> AC 200V 3-Phase 1kVa
